Intel installs production tools at Arizona Fab 62, updates Ohio plant

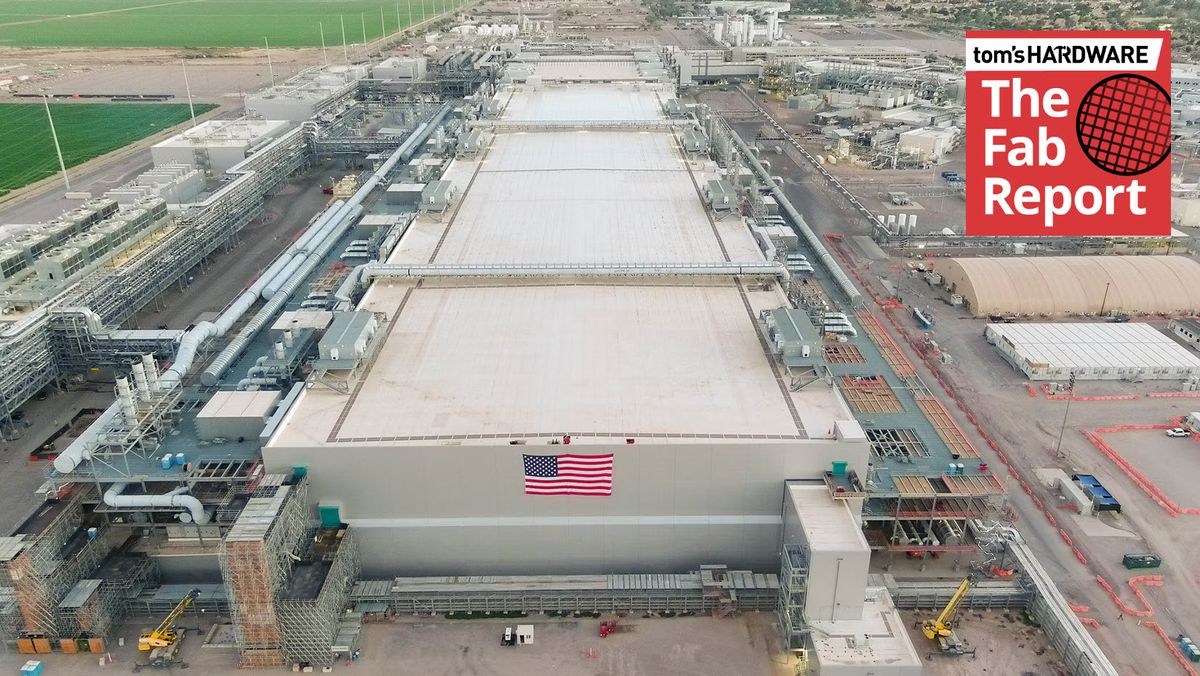

Arizona Fab 62 receives new production equipment

Intel announced this week that it has installed a suite of advanced lithography and metrology tools at its Fab 62 facility in Chandler, Arizona. The equipment, sourced from multiple vendors, is designed to support the production of 7 nanometer (nm) and 5 nm logic chips, which are among the most demanding nodes in the industry.

The installation marks the first time Intel has deployed this generation of tools in an existing U.S. fab, moving the plant from a pilot phase to full‑scale manufacturing. According to the Intel press release, the tools will enable higher wafer throughput and improved defect control, both critical for meeting the volume targets set for the next three years.

What the tools enable

Key capabilities introduced at Fab 62 include:

• Extreme ultraviolet (EUV) lithography that prints finer patterns with greater precision.
• Advanced process control sensors that monitor temperature, pressure, and chemical composition in real time.
• Automated defect inspection systems that reduce manual inspection time.
• Enhanced wafer handling robots that increase the number of wafers processed per shift.

These technologies collectively reduce cycle time, lower cost per wafer, and improve overall yield. Intel expects the upgraded line to achieve a yield increase of up to five percent compared with earlier generations.

Impact on local supply chain

The new tools have a ripple effect on the regional ecosystem. Arizona‑based suppliers of chemicals, precision optics, and clean‑room components are seeing increased orders. The state government has reported a rise in high‑skill job openings related to equipment maintenance and process engineering.

Benefits include:

1. Creation of more than 300 direct jobs at the fab.
2. Expansion of apprenticeship programs in partnership with local community colleges.
3. Growth of ancillary businesses such as logistics firms and equipment calibration services.

Intel’s investment aligns with Arizona’s broader strategy to become a hub for advanced manufacturing, a goal highlighted in recent statements from the Arizona State University news office.

Ohio plant progress and timeline

While Arizona moves into production, Intel continues to build a new 300 mm wafer fab in Marietta, Ohio. The Ohio site is part of the company’s $20 billion expansion plan announced in 2022, intended to add 20,000 jobs and increase U.S. chip output by 30 percent.

Current construction milestones

As of the latest update, the Ohio facility has completed the following milestones:

• Groundbreaking and site grading finished in early 2023.
• Installation of the primary clean‑room infrastructure, including HVAC and filtration systems.
• Delivery of the first batch of wafer fab equipment, scheduled for arrival in Q4 2024.

Intel projects that the fab will begin pilot production in early 2026, followed by full commercial output by 2028.

Future capacity goals

The Ohio plant is slated to produce 5 nm chips for data‑center and high‑performance computing workloads. When fully operational, the facility is expected to output roughly 30,000 wafers per month, a volume that will support both domestic customers and export markets.

Intel’s leadership has emphasized that the Ohio fab will be a cornerstone of the company’s “IDM 2.0” model, which combines internal manufacturing with strategic partnerships.

Strategic significance for U.S. semiconductor policy

Both the Arizona upgrade and the Ohio construction are closely tied to federal initiatives aimed at strengthening domestic chip production. The U.S. Department of Commerce has highlighted these projects as key deliverables under the CHIPS and Science Act, which provides $52 billion in subsidies and incentives for semiconductor manufacturing.

Alignment with federal initiatives

Intel’s investments qualify for multiple grant programs, including the Advanced Manufacturing Production Credit and the Research, Development, and Innovation (RD&I) funding stream. The company has already secured $7 billion in federal support for the Ohio fab, a figure that underscores the government’s confidence in Intel’s execution capability.

Industry response

The Semiconductor Industry Association has praised Intel’s progress, noting that the expansion helps reduce reliance on overseas fabs and improves supply chain resilience. Competitors such as TSMC and Samsung have also announced new U.S. projects, but Intel remains the only company with a fully integrated device‑manufacturing model operating at advanced nodes on American soil.

Challenges and outlook

Despite the positive momentum, Intel faces several hurdles as it scales up production.

Technical hurdles

Deploying EUV lithography at volume requires meticulous calibration and ongoing maintenance. Any deviation in exposure dose or mask alignment can lead to yield loss. Intel has invested heavily in AI‑driven process control, but the technology is still maturing.

Market demand considerations

Global demand for advanced chips remains strong, driven by AI workloads, cloud computing, and automotive applications. However, price volatility and geopolitical tensions could affect order books. Intel’s diversified product portfolio, which includes both consumer and data‑center segments, provides a buffer against market swings.

Overall, the installation of production tools at Fab 62 and the steady progress in Ohio signal a decisive step toward a more self‑sufficient U.S. semiconductor ecosystem. The combined effect of increased capacity, job creation, and alignment with national policy positions Intel as a pivotal player in the next generation of chip manufacturing.
