Russia Unveils First 130nm Lithography Stepper, Lagging Modern Tech by 25 Years

Understanding Lithography Steppers

In semiconductor manufacturing, a lithography stepper is the machine that transfers circuit patterns onto silicon wafers. It uses light, lenses and precise positioning to create features measured in nanometers. Modern fabs rely on extreme ultraviolet (EUV) steppers that can print sub‑10nm structures, but older generations such as 130nm steppers remain viable for many applications, especially in mature markets.

ZNTC’s Breakthrough in 130nm Technology

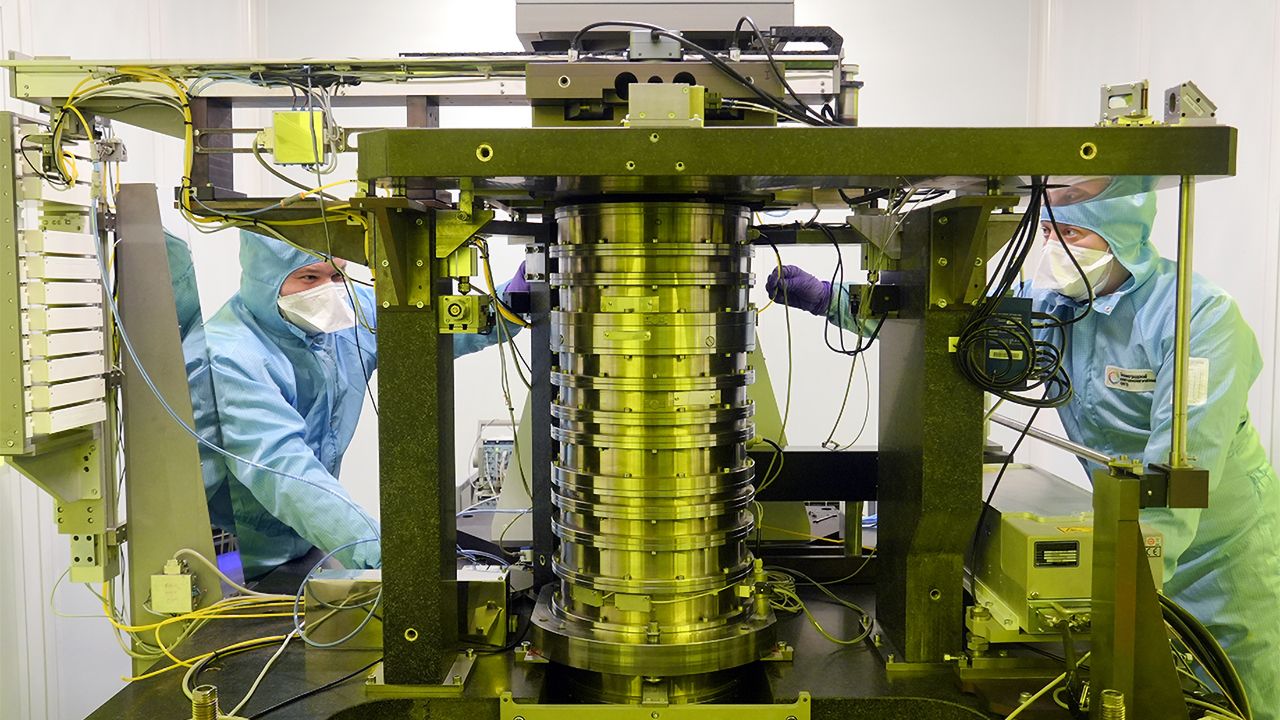

The Russian company ZNTC announced the completion of a stepper capable of handling 130nm design rules. The device was developed in response to long‑standing import restrictions that have limited access to cutting‑edge equipment. According to the firm, the stepper can process wafers at a rate suitable for low‑volume production of microcontrollers, power management ICs and other components that do not demand the latest nodes.

Key specifications include:

• Resolution: 130nm line width
• Wafer size compatibility: 200mm
• Throughput: up to 10 wafers per hour
• Operating wavelength: 193nm deep ultraviolet

These figures place the tool squarely in the “mature node” category, a segment still used by automotive and industrial suppliers worldwide.

How the New Tool Compares with Modern Equipment

While the Russian stepper represents a technical milestone, it remains roughly 25 years behind the most advanced EUV systems used by leading foundries. Modern equipment can achieve sub‑7nm features, process 300mm wafers and deliver throughput measured in dozens of wafers per hour. The performance gap is evident in several dimensions:

1. Resolution: 130nm versus sub‑7nm.
2. Wafer size: 200mm versus 300mm.
3. Throughput: 10 wafers per hour versus 30‑40 wafers per hour.
4. Energy consumption: older optics require more power per wafer.

For reference, the International Semiconductor Equipment and Materials Association (SEMI) tracks global equipment capabilities and notes that most high‑volume fabs have migrated to EUV technology in the last decade SEMI industry data.

Implications for Russia’s Semiconductor Industry

Domestic production of chips has become a strategic priority for Russia after years of sanctions that limited imports of critical hardware. The new stepper could enable a modest, self‑sufficient supply chain for certain product categories. Potential benefits include:

• Reduced reliance on foreign suppliers for mature‑node devices.
• Creation of local expertise in photolithography and process integration.
• Opportunities for small‑scale fab construction in regions with existing industrial infrastructure.

Analysts at the Russian Academy of Sciences have highlighted that a home‑grown stepper can serve as a platform for research and education, allowing universities to train engineers on real‑world equipment Russian Academy of Sciences.

Market Segments Likely to Benefit

Products that typically use 130nm or larger nodes include:

• Microcontrollers for automotive control units.
• Power management ICs for consumer electronics.
• Analog and mixed‑signal chips used in industrial automation.

These segments do not require the density of cutting‑edge nodes, making the Russian stepper a practical solution for domestic manufacturers seeking to replace imported parts.

Potential Challenges and Next Steps

Despite the progress, several hurdles remain before the stepper can contribute to large‑scale production.

Supply Chain Gaps

The stepper itself is only one part of a complex ecosystem. Photoresists, mask blanks, metrology tools and clean‑room infrastructure must also be sourced or produced locally. International sanctions have limited access to many of these inputs, forcing Russian firms to develop alternatives that may not yet meet global quality standards.

Technical Expertise

Operating a lithography system demands highly trained staff. While ZNTC has assembled a team of engineers, scaling up to a full‑fledged fab will require additional talent in process development, equipment maintenance and yield analysis.

Economic Viability

Building a fab around a 130nm stepper involves significant capital expenditure. Investors will weigh the lower per‑unit cost of mature‑node chips against the limited market size for domestically produced devices. Government incentives could tip the balance, but long‑term profitability remains uncertain.

Looking ahead, ZNTC plans to begin pilot runs by the early 2030s, targeting a limited set of designs that have already been qualified for 130nm production. If successful, the stepper could serve as a stepping stone toward more advanced nodes, provided that Russia can secure the necessary supply chain components and technical expertise.

Global Context and Future Outlook

The emergence of a Russian 130nm stepper reflects a broader trend of nations seeking self‑reliance in semiconductor manufacturing. Similar initiatives are underway in countries such as India and Brazil, where governments are funding domestic fabs to reduce exposure to export controls.

While the Russian tool will not compete with the most advanced EUV machines, it fills a niche that remains important for many industries. The real test will be whether the stepper can be integrated into a sustainable production line that delivers reliable chips at competitive prices.

In the meantime, the stepper stands as a tangible sign that Russia is investing in the foundational layers of chipmaking, a move that could reshape regional supply dynamics over the coming decade.
